Evolabel
Simplicity every step of the way.
Evolabel develops, manufactures and supplies innovative and intuitive machines for automatic labeling in production or warehousing around the globe.
Mission | To provide the greatest Print & Apply solution in the industry.
What we do | We take complex challenges and turn them into simple and intelligent solutions. Simplicity through technology is our philosophy, every step of the way.
How we do it | Innovation is at the heart of what we do. It is what drives us. We focus on attracting the right people to join our family and giving them the right tools to innovate.
Coldstore Range
- FlexWipe® Coldstore – Pallet Labeling System
- eTamp Applicator Coldstore
- T63 G2 / D63 / D43 Coldstore Printers
- Accessories

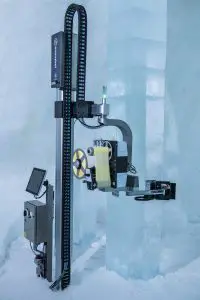

FlexWipe® Motorized Stand XL Coldstore Pallet Labeling System
Evolabel FlexWipe pallet labeling system – is enhancing safety, maximizing throughput, ensuring traceability and enabling flexibility.
- Unmatched reliability at -22°F/-30°C
- Up to 50% smaller footprint
- Advanced software for optimal performance
- Built with safety in mind
FlexWipe® Coldstore Pallet Labeling System
- Labeling on Rough or Cold Surfaces
- Incomplete Pallet Detection
- Dependable Code Validation
eTamp Coldstore
- Compatible Printers: D43 CS, D63 CS
- Can label from side or above

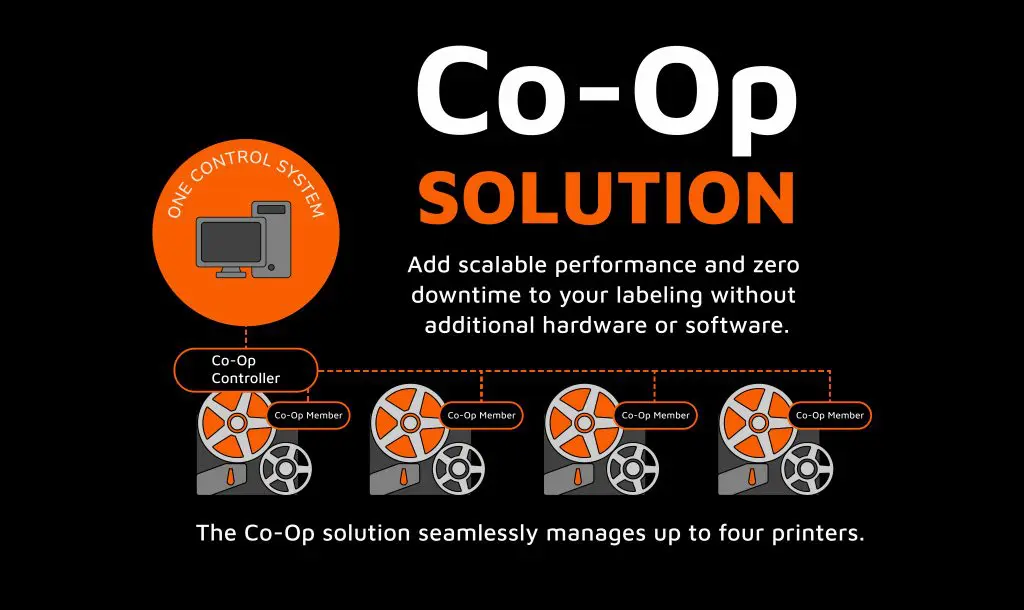

Co-Op - Collaborative Printer Solution
The core of the solution is the principle of collaboration. The printers in a Co-Op group communicate with each other and schedule each print job, in real time, to the printer that is most suited for the task, in other words, the printers share the workload.
The Co-Op group is controlled by one main printer. All additional printers are directly controlled by the main printer, and it will handle the rest of the “line control” by itself. The result is a scalable labeling solution that reduces operator stress, while maximizing uptime and throughput, without requiring any external hardware or software.

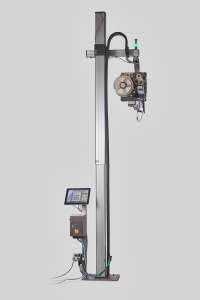

FlexWipe® Pallet Labeling System
Evolabel FlexWipe® Pallet Labeling System – is enhancing safety, maximizing throughput, ensuring traceability and enabling flexibility.
- Labels virtually any surface
- Easily applies labels on three sides
- Reduces investment costs
- Small footprint
- One machine handles it all
Modular System
Compact and intelligent building blocks provide the optimal solution for your specific Print & Apply requirements, even in very narrow spaces.
When building your product, configure and select acording to the Modular System chart (right).
Printers
We offer two sizes with several options: 4” and 6”, corresponding to the width of the printhead. This flexibility enables the effortless handling of a wide spectrum of label sizes.
T63 Printer
Print technology: Thermal Transfer and Direct Thermal
- 6 inch print width, 300 dpi resolution
- Suitable Applicators: All except Belt, Blow and FlexWipe
T43 Printer
Print technology: Thermal Transfer and Direct Thermal
- 4 inch print width, 300 dpi resolution
- Suitable Applicators: All except Blow and FlexWipe
D63 Printer
Print technology: Direct Thermal
- 6 inch print width, 300 dpi resolution
- Suitable Applicators: All except Belt, Blow and FlexWipe
D43 Printer
Print technology: Direct Thermal
- 4 inch print width, 300 dpi resolution
- Suitable Applicators: All except FlexWipe
Applicators
For optimal functionality, user friendliness and safety, Evolabel designs the Printers and Applicators as one system.
We offer a wide range of Applicator Modules within three categories:
- Linear Applicators
- Rotary Applicators
- Contact-free Applicators
Tamp
The Tamp Applicator is designed for Print & Apply applications with high performance demands and accurate label positioning. It features a stroke length of 70 mm (2.75”).
eTamp
Designed for stationary objects, the system offers a safety focused and lightweight design with high labeling precision. Adjustable stroke lengths ranging from 150 mm (5.9”) to 850 mm (33.5”) allow flexible adaptation to different product types and sizes, reaching products both near and far, regardless of which side you label on. With its extended stroke length and precise stepper motor control, the eTamp handles side, top, and pallet labeling with ease.
QuickTamp®
A fast and user-friendly logistics labeling system, excellent for e-Commerce, applying shipping labels on top of boxes and eliminating the overall bottleneck in production lines. The QuickTamp® andles random height variations of 1meter (3’3”) and conveyor speeds up to 80m/min (260 fpm). With our built-in Co-Op function, double or triple the capacity without changing your own software system.

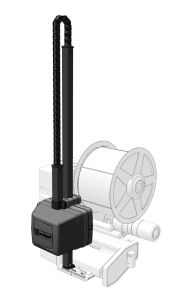

QuickTamp® Vac
QuickTamp® Vac handles small labels reliably down to 20×20 mm (0.79”x0.79”), thanks to the vacuum in the pad during the application cycle. Our optional height sensor makes handling height variations effortless (valid for all QuickTamp® models).
QuickTamp® Airless
Fully electric Print & Apply solution that delivers high speed and exceptional reliability.
Evolabel QuickTamp® Airless is designed with sustainability in mind, eliminating the need for compressed air. It is ideal for high‑throughput applications such as logistics centers, warehouses, and e- ommerce operations, as well as any installation where compressed air is unavailable. This new solution features a retrofittable design, allowing you to reuse an existing Evolabel QuickTamp® Applicator for new applications.
Wipe90 & Wipe
One module – multiple choices with variable reach.
Flexible, fast and safe stepper motor driven applicator for front, side, rear, top, corner wrap, adjacent sides, and two-sided label applications. The light 3D printed arm gives fast and precise labeling without sacrificing safety. The unique tactile arm detects not only the product for perfect label application, but also obstacles in its way – which enhances both safety and reliability. This enables fast and precise labeling, even on very light products.
The Wipe system’s rotating movement is aligned with the print direction, allowing long labels, over 300 mm (12”), to be applied smoothly onto the product.
The Wipe90 system features a fast, rotating movement positioned 90 degrees to the print direction, making it ideal for applying wide, short labels with high speed and accuracy.
Belt
A vacuum belt transports the label from the printer to the product. Running the belt at the same speed as the conveyor gives very accurate label positioning, on the bottom, side or on top of even extremely light products. Now also with a mirrored design option, allows easier installations and flexible line configurations. Accessory options let you tailor the solution to your specific production needs.
BlowVac
Applies labels with sizes up to 150x100mm (6”x4”) without any moving parts. The patented Applicator Pad has an integrated air-knife that applies the label from a distance up to 150mm (5.9”).
